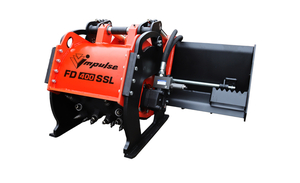

This type of attachment is designed for asphalt and concrete pavement treatment before cold-milling pothole repair. The road milling machines are also used for removing road marking, raised rib marking and slope trimming.
Benefits:
- No elevation difference between adjacent passageways due to use of independent adjustment of the supporting skids;
- Even if the miller is installed out of line, a clear milling depth and a predictable speed of asphalt removal is provided by the self-leveling system built in the basic equipment;
- No vibration of the loader and protection against asphalt chips flying due to the rigid closed structure of the equipment;
- Reduced equipment downtime and easier maintenance owing to a well-thought design;
- Maximum reliability and, hence, high productivity of equipment due to the direct drive of the milling drum;
- Predictable result and fine-tuning of equipment for specific tasks: milling, demarking or cutting junctions through continuous adjustment of the milling depth;

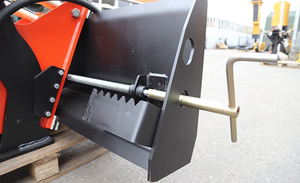

- Asphalt milling closely to the curb is enabled by the continuous drum offsetting system.
Compatibility | Skid-steer loader |
---|
Oil flow, gpm | 18,5-26,5 |
---|
Oil flow, l/min | 70-100 |
---|
Operating pressure, bar | 180-210 |
---|
Number of teeth, pc | 48 |
---|
Weight, lb | 1345.05 |
---|
Weight, kg | 610 |
---|
Lateral misalignment 8 degrees | Optional |
---|
Side Shift Adjustment | Mechanical |
---|
Depth adjustment | Mechanical |
---|
Planing depth, inch | 0-4,3 |
---|
Planing depth, mm | 0-110 |
---|
Planing width, inch | 15.75 |
---|
Planing width, mm | 400 |
---|
